Susceptibility Zoning plugin (SZ)
See also
You can find the plugin codes at this link
Introduction
This repository contains the code for a plugin for QGIS, called “Susceptibility Zoning plugin” (SZ-plugin), aiming at creating maps of susceptibility to various natural forcing elements.
The plugin has been developed with a main focus and application towards landslides susceptibility, but it can be applied to different types of natural events or inter-disciplinary applications.
The plugin uses several type of statistical model for susceptibility evaluation, such as:
Weight of Evidence
Frequency Ratio
Logistic Regression
Decision Tree
Support Vector Machine
Random Forest
The plugin allows to cross-validate the results by simple random selection of test/train samples or allows to cross-validate by k-fold cross-validation method.
Minimum requirements
Minimum tested version of QGIS is 3.28
Tested on:
Ubuntu 20.04 - QGIS 3.34
Windows 10 - QGIS 3.28/QGIS 3.34
MacOS Sonoma 14.4 - QGIS 3.28
Download and install
The SZ plugin is not an official QGIS plugin.
It can be installed on QGIS >= 3.28 adding the Plugin Repository to QGIS manage and install plugins:

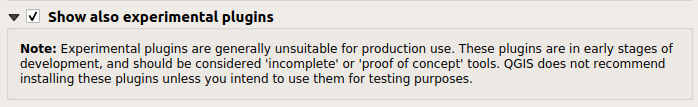

- flag show also experimental plugins

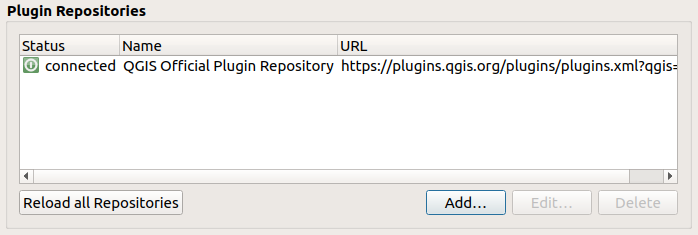

add plugin repository

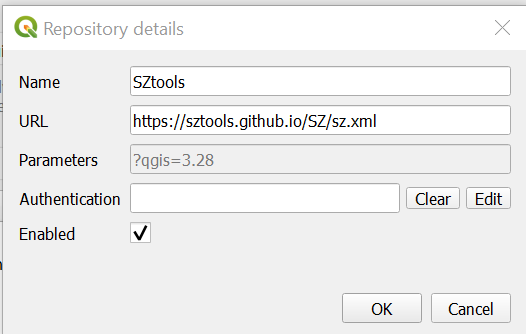

edit repository and add https://sztools.github.io/SZ/sz.xml (THIS REPOSITORY IS TEMPORARY)
or
cloning the GitHub repository or downloading it as zip file (and then unzipping it) and copying the sz_module folder in your local python/plugin folder (read here for more information).

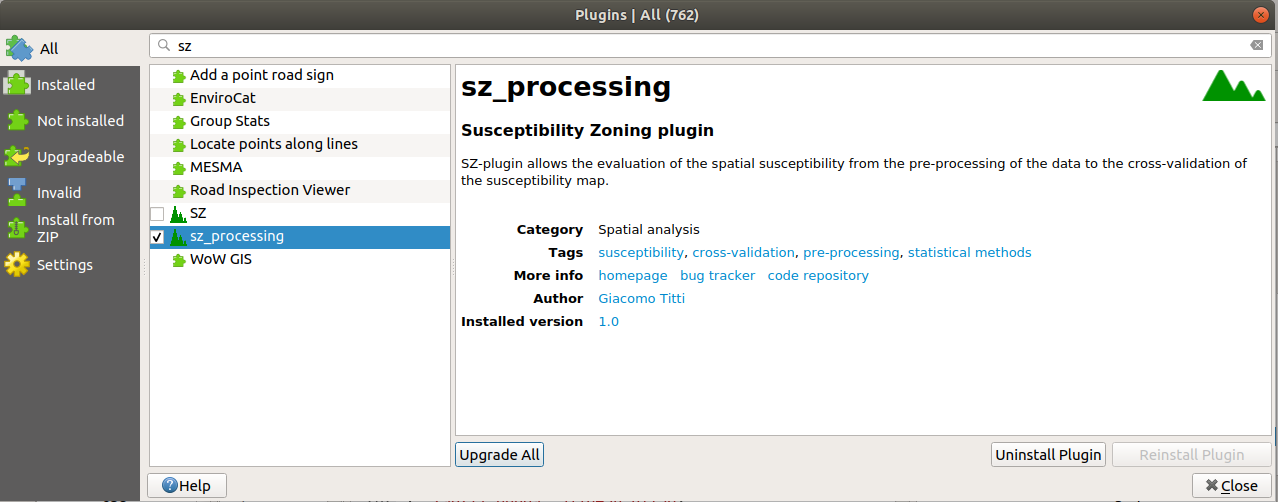

Lunch QGIS 3.x, and abilitate the plugin from manage and install plugin/installed/sz_processing
or
cloning the GitHub repository or downloading it as zip file (and then unzipping it), and zip the folder sz_module to sz_module.zip. Finally you can install the plugin by using the menu install from zip.

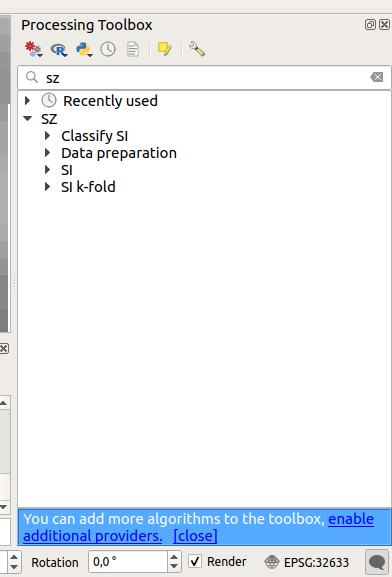

At the end you should have the SZ plugin in your processing toolbox
GUI
The functions are grouped into 3 categories: * Data preparation * SI * SI k-fold * Classify SI

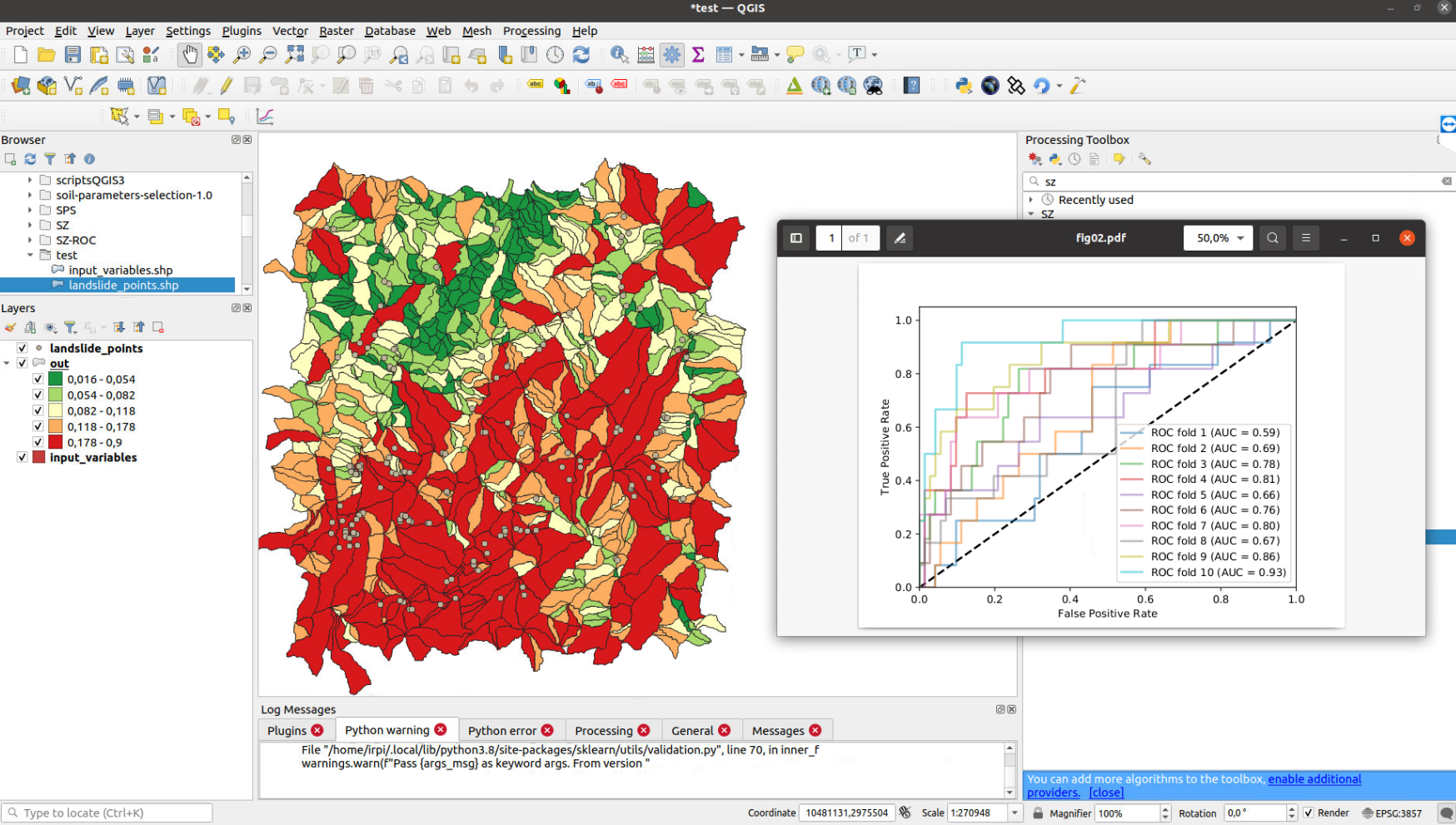

Data preparation functions can be used for data pre-processing SI functions run the statistic models for susceptibility, cross-validate by a simple random selection of train/test samples and evaluate the prediction capacity by ROC curves SI k-fold functions run the statistic models for susceptibility, cross-validate by k-fold method and evaluate the prediction capacity by ROC curves Classify SI functions allows to categorize the susceptibility index into n classes on the base of AUC maximization.
Input data of SI and SI k-fold functions

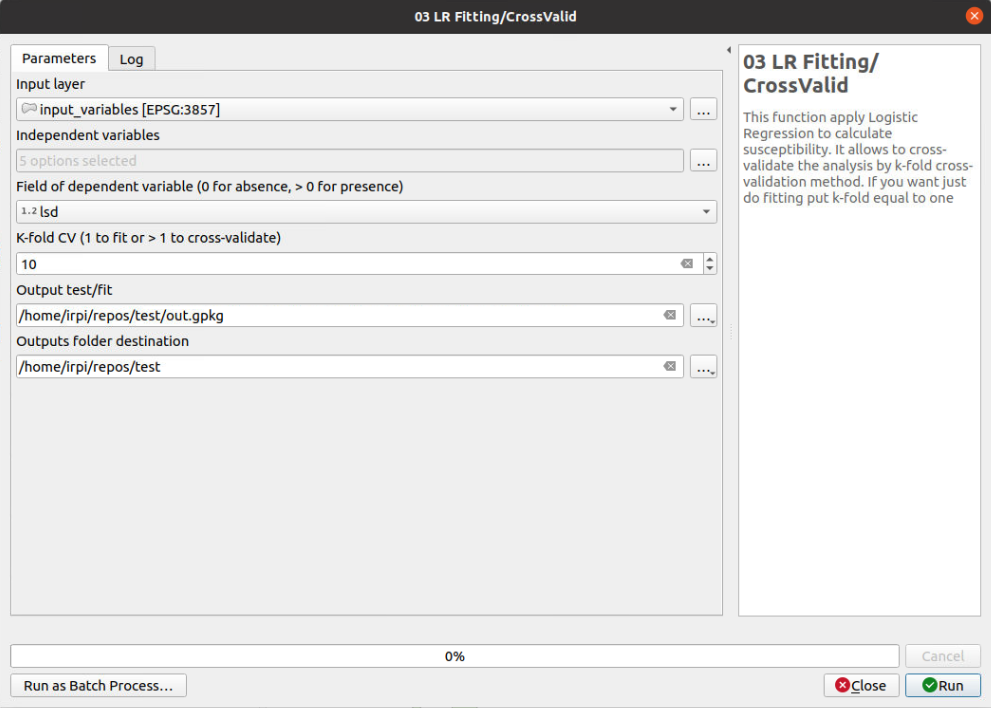

Input data for SI k-fold or SI functions should be a vector layer with a number of fields for independent variables and a field for the dependent variable classified binomially: 0 for absence, >0 for presence.
Test

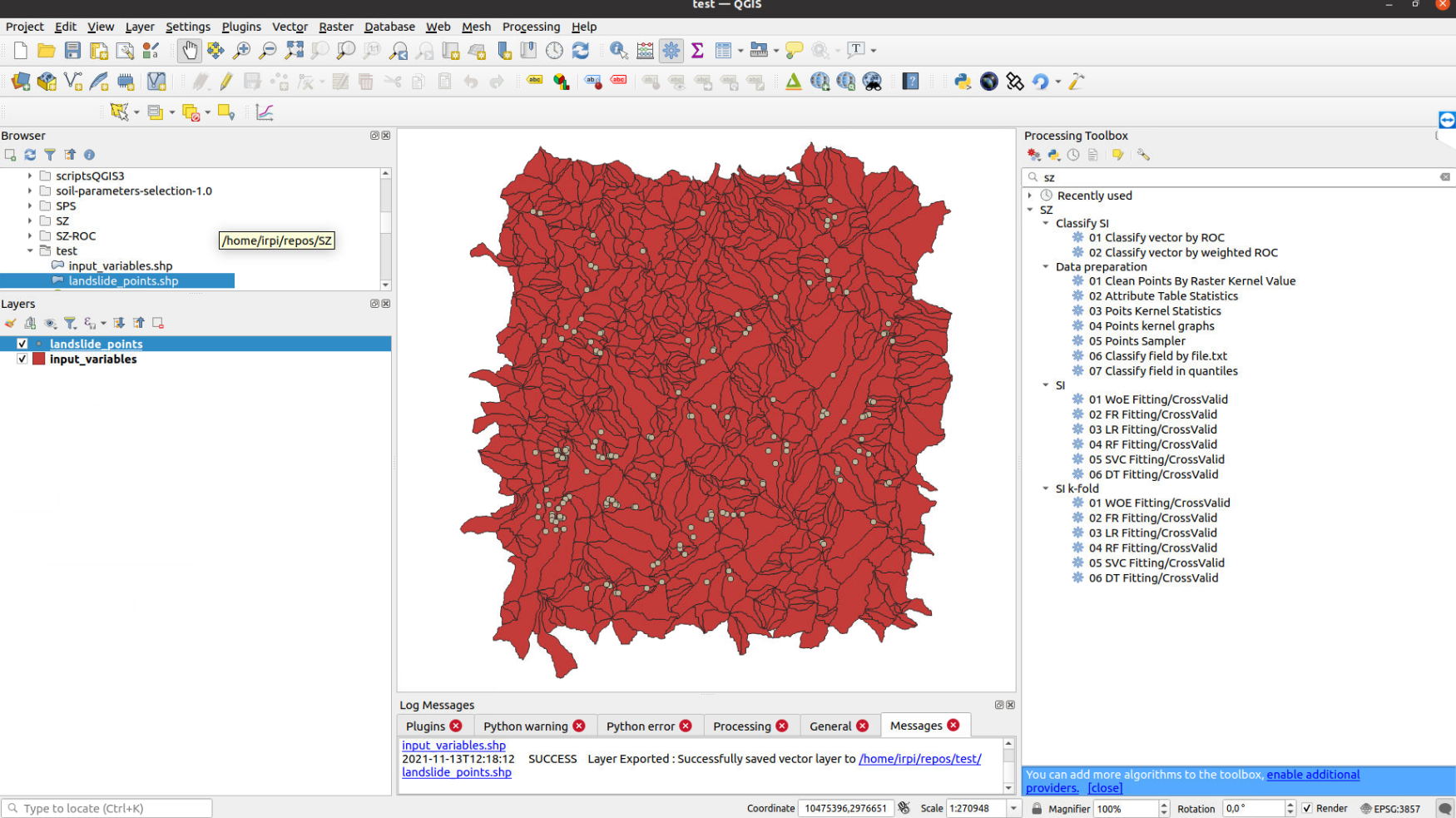

A dataset and QGIS project are available in test folder to test the plugin.
Third-part libraries and plugins used
Tutorial
video tutorial: https://www.youtube.com/watch?v=XpsiCkVF11s
Application
Titti G, Sarretta A, Lombardo L, Crema S, Pasuto A and Borgatti L (2022) Mapping Susceptibility With Open-Source Tools: A New Plugin for QGIS. Front. Earth Sci. 10:842425. doi: 10.3389/feart.2022.842425
Publications
A few examples and references about applications
Titti G, Sarretta A, Lombardo L, Crema S, Pasuto A and Borgatti L (2022) Mapping Susceptibility With Open-Source Tools: A New Plugin for QGIS. Front. Earth Sci. 10:842425. doi: 10.3389/feart.2022.842425
Titti, G., van Westen, C., Borgatti, L., Pasuto, A., & Lombardo, L. (2021). When Enough Is Really Enough? On the Minimum Number of Landslides to Build Reliable Susceptibility Models. Geosciences, 11(11), 469.
Titti, G., Borgatti, L., Zou, Q., Cui, P., & Pasuto, A. (2021). Landslide susceptibility in the Belt and Road Countries: continental step of a multi-scale approach. Environmental Earth Sciences, 80(18), 1-18. 10.1007/s12665-021-09910-1
Titti, G., Borgatti, L., Zou, Q., Pasuto, A., 2019. Small-Scale landslide Susceptibility Assessment. The Case Study of the Southern Asia. Proceedings 30, 14. 10.3390/proceedings2019030014
Presentations
A list of presentations made about the plugin and its applications
Titti, Giacomo, Sarretta, Alessandro, Crema, Stefano, Pasuto, Alessandro, & Borgatti, Lisa. (2020, March). Sviluppo e applicazione del plugin Susceptibility zoning per il supporto alla pianificazione territoriale. Zenodo. 10.5281/zenodo.3723353
Credits
Giacomo Titti, Alessandro Sarretta and Luigi Lombardo, Padova, November 2021
please cite as: Giacomo Titti, Alessandro Sarretta and Luigi Lombardo. (2021). CNR-IRPI-Padova/SZ: SZ plugin (Version v1.0). Zenodo.
Contacts
If you have any problem, please write to giacomotitti@gmail.com or create new issue here
